Routers

SAMURAI Networks collects routers over SSH: per-VRF routing tables, interfaces, discovered endpoints and ACLs.

Open a device from the Devices page or the sidebar to reach these tabs.

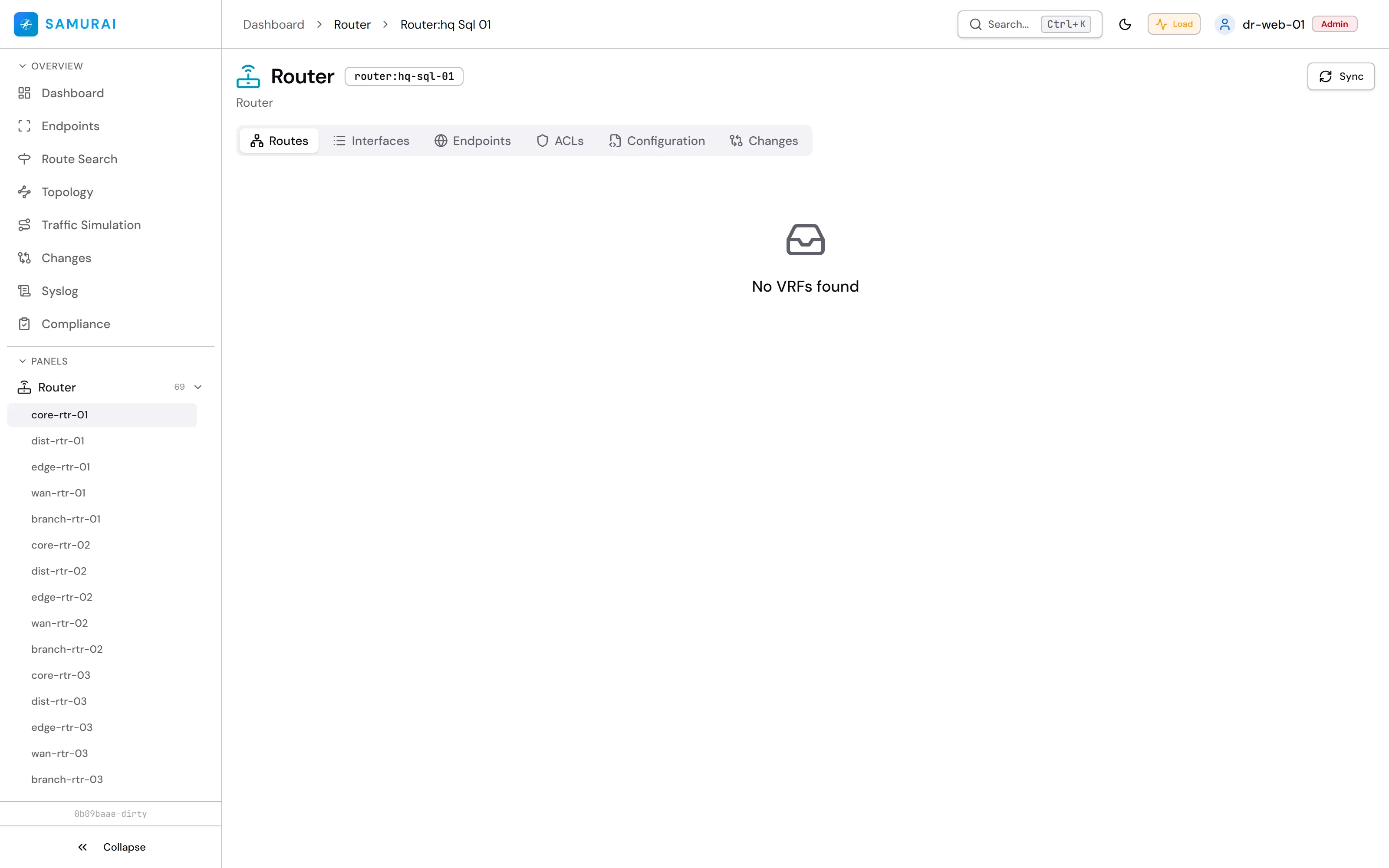

Routes

The routing table, normalized across vendors: destination, next hop, egress interface, metric and flags, split per VRF where the platform has them. Searchable and exportable; cross-vendor lookups are available from Route Search.

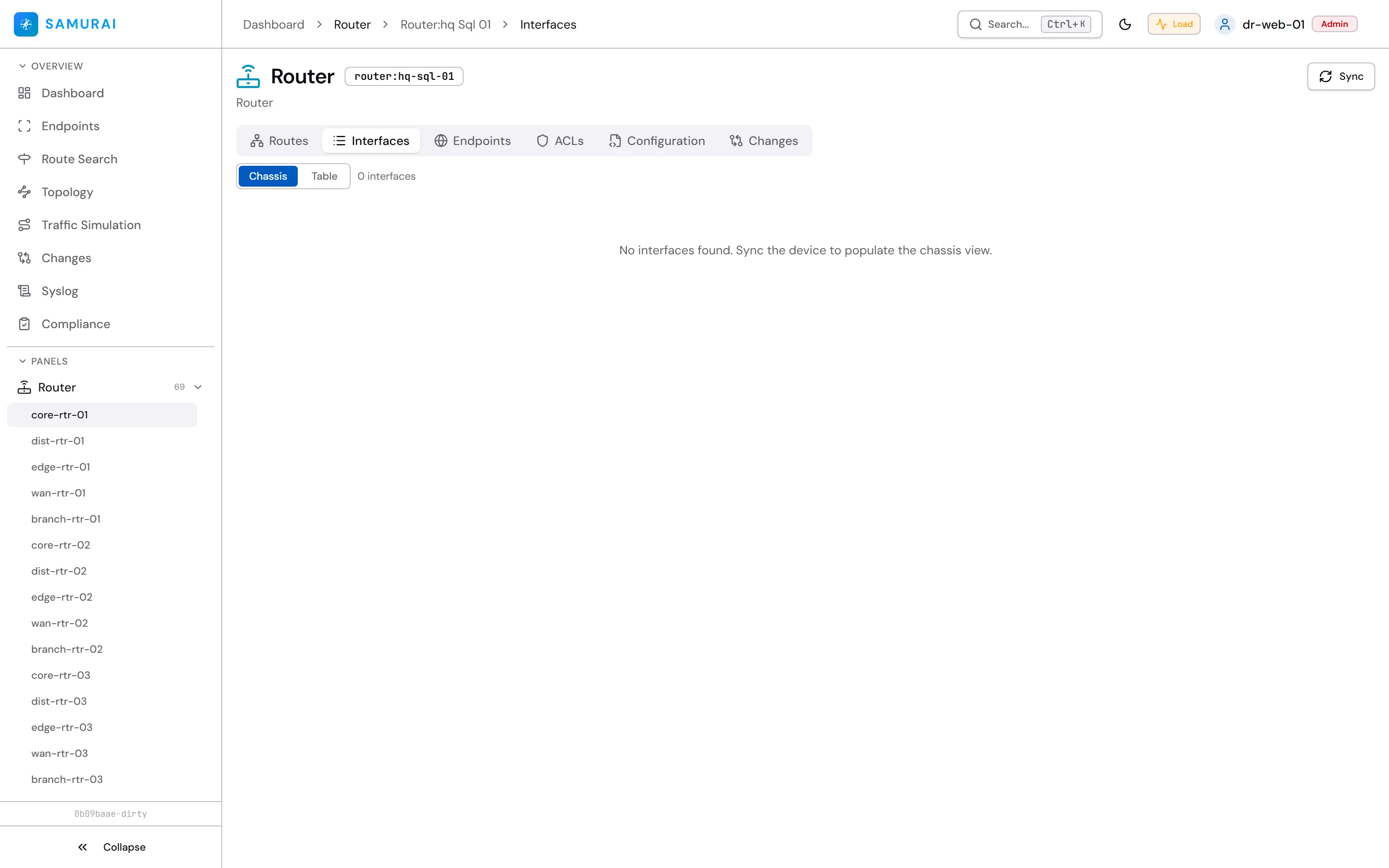

Interfaces

Physical and logical interfaces with status, addressing and description.

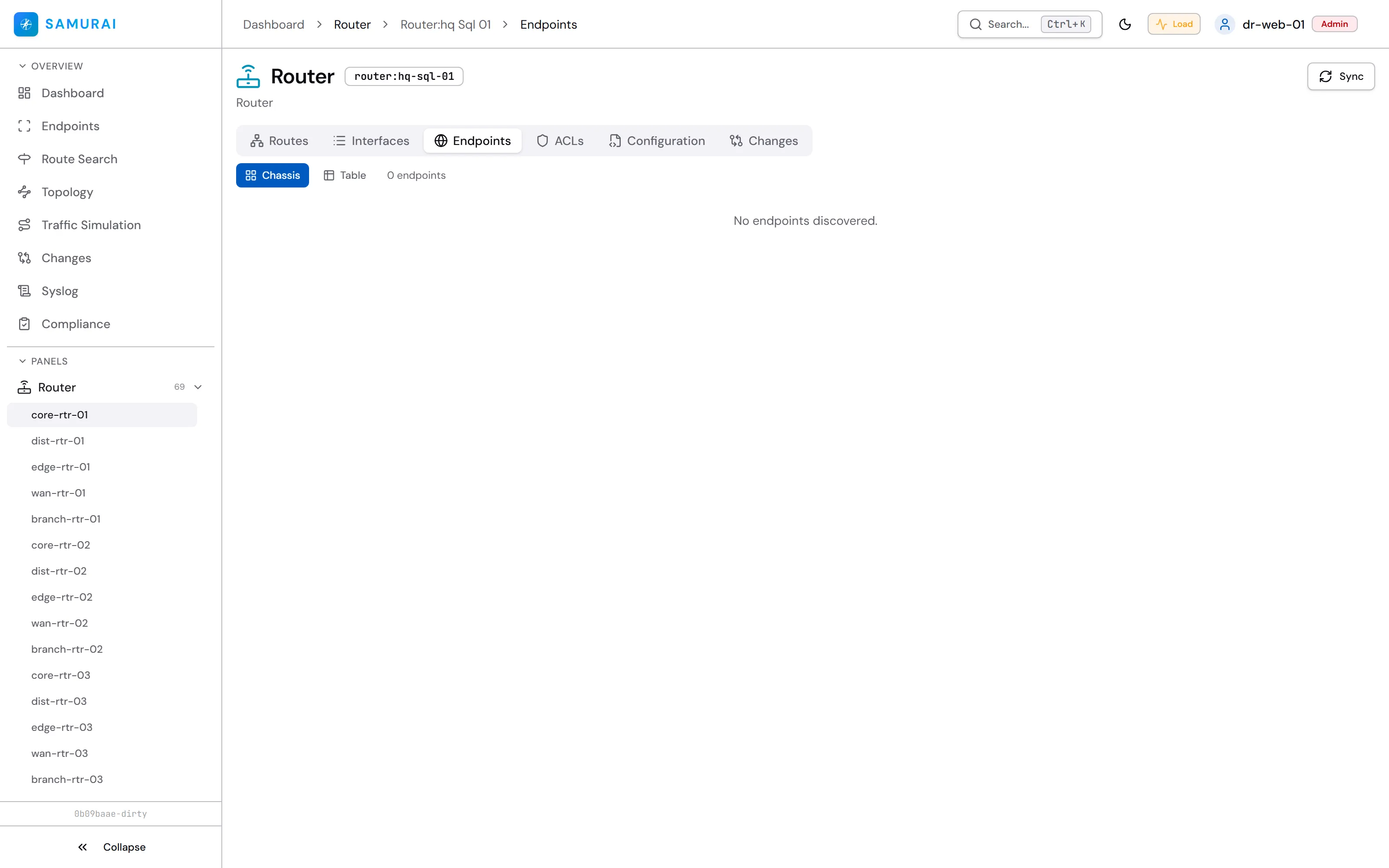

Endpoints

Hosts learned on this device (by MAC, ARP, DHCP snooping, CDP/LLDP and 802.1X) enriched with vendor (OUI) and identity.

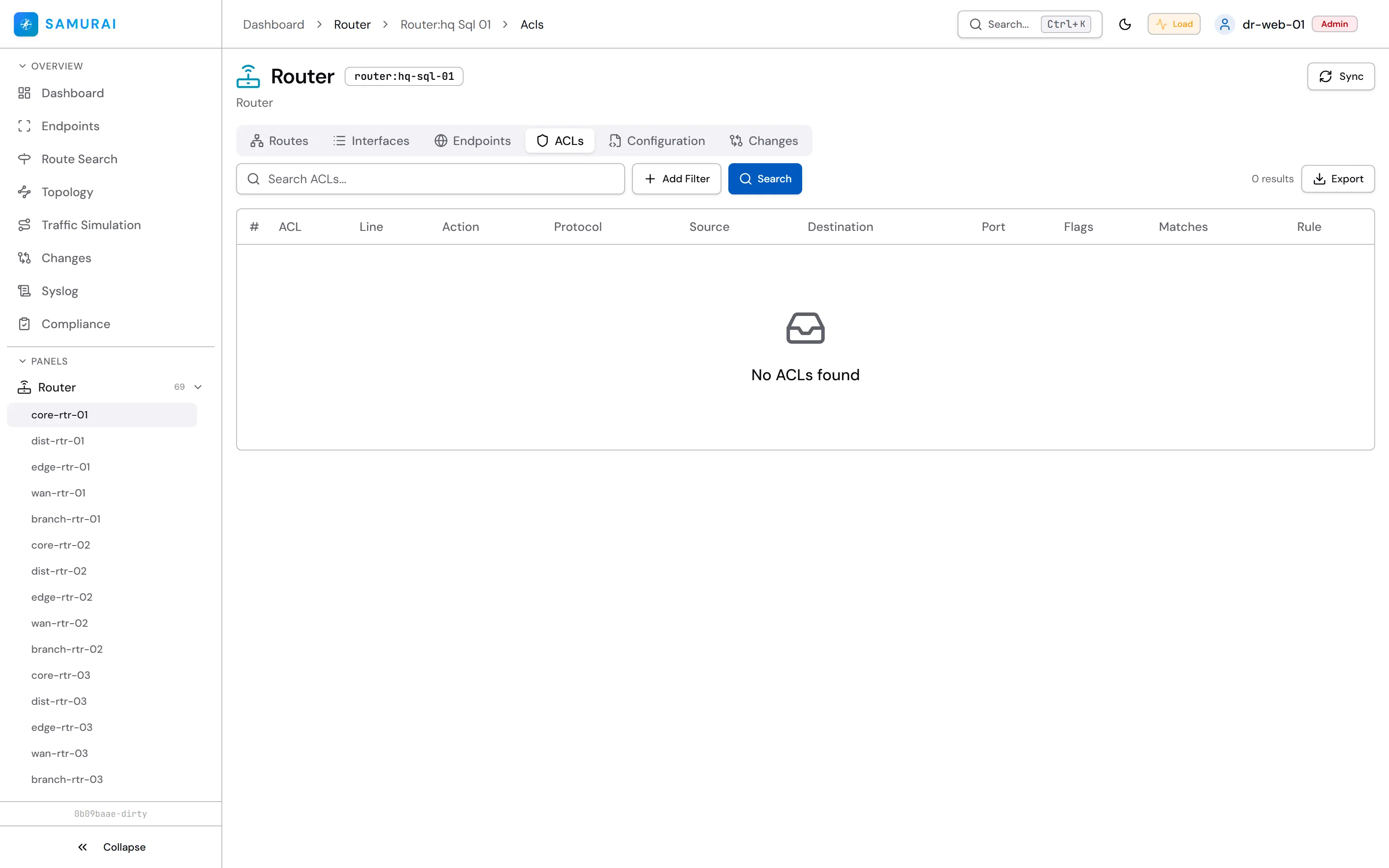

ACLs

Access control lists parsed into a structured, searchable model with per-ACE source/destination/protocol.

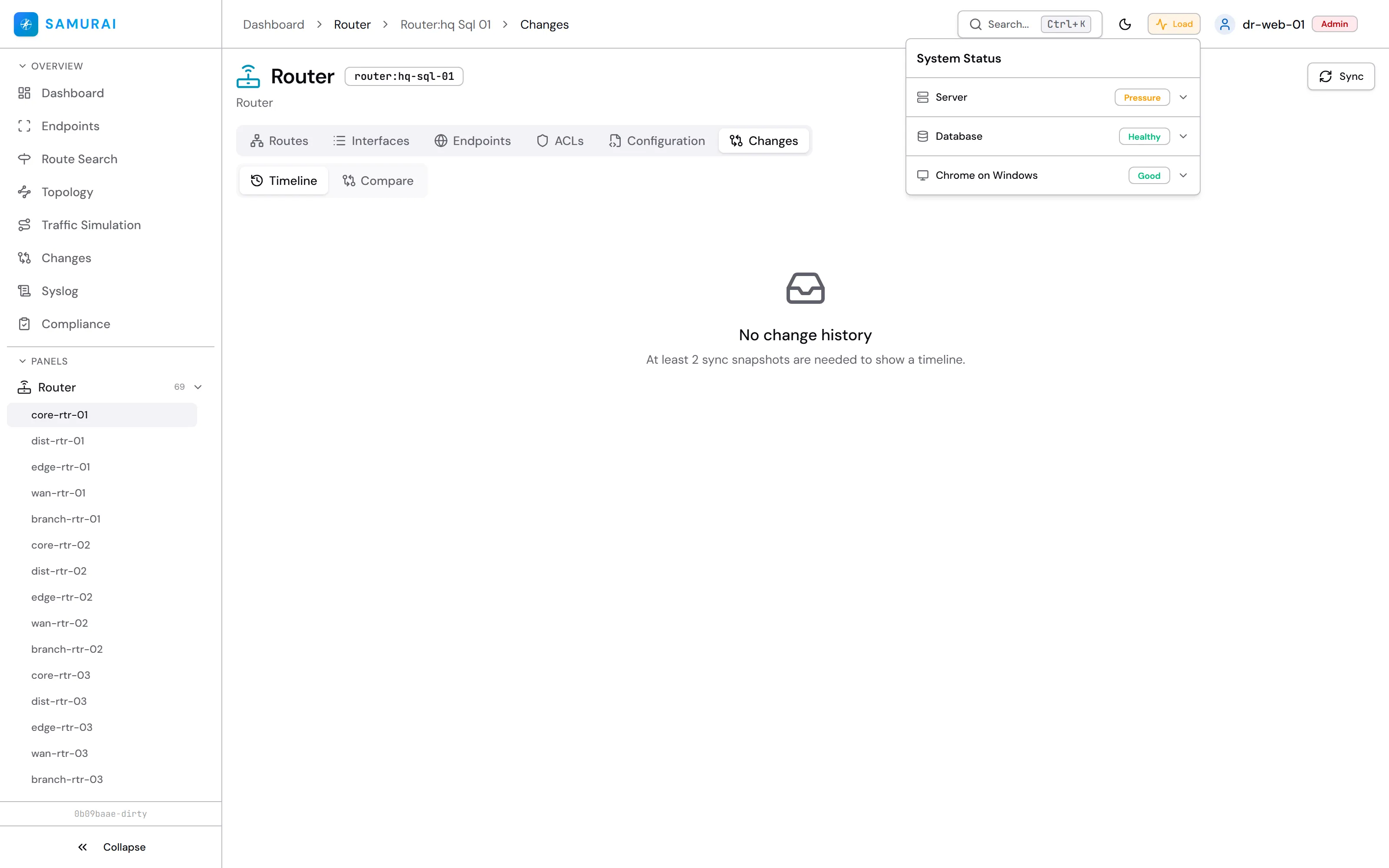

Changes

Configuration changes for this device, grouped by sync on a timeline. Added, removed and reordered rules render as structured cards (source and destination zones, addresses, applications and services laid out like the rule itself), each attributed to the responsible admin and access method where audit data is available. Compare diffs any two snapshots, and Analyze with AI explains a change in place when an AI provider is configured.
